Head 2 Axles HS655 + Spindle ES789
2-Axis Electroheads with Automatic Tool Change Spindle is designed for application on machines working wood, mdf, fiberglass, plastic and composites and aluminum. It is suitable for milling, boring, routing, grinding, polishing, etc.
Electrohead Data:
- Standard Servomotors: Yaskawa - Siemens - Fanuc - Fagor - Schneider - Osa - Heidenhain
- A Axis Stall / Max Torque: 400Nm / 1000Nm
- C Axis Stall / Max Torque: 500Nm / 1200Nm
- Max. Speed Axes A / C: 170º sec / 170º sec
- Axis Positioning Accuracy A / C: 60 arsec / 60 arsec (30 arsec / 30 arsec - with Axes Encoder)
- Axis Rotation A / C: ±120º / ±245º
- C Axis Endless Rotation: Option
- A Axis Endless Rotation: No
- Direct Axes Encoder: Option (AMO)
- Pneumatic Axes Brakes: Option
Automatic Tool Change Spindle
- HSD Model: ES789
- Liquid Cooling
- Rated Speed: 9,000/24,000 RPM
- Rated Power (S1): 15.0 Kw (10.0 HP) - Asyn.
- Rated Power (S6): 18.0 Kw (24.1 HP) - Asyn.
- Rated Torque (S1): 19.1 Nm.
- Rated Torque (S6): 20.9 Nm
- Spindle Encoder: Option
- Tool Holder: HSK-63F
- IP Class: 54
- Insulation Class: F
- Front Bearing: Super precrision dual ceramic bearings
- Rear Bearing: Super precrision dual ceramic bearings
- Integral Pneumatic Valve managing all air features
- Cone clean blow off, double acting pneumatic cylinder and front bearing nose pressurization
- Optional: Rotary Joint for internal tool cooling
Made in Italy by HSD
Warranty: 12 months

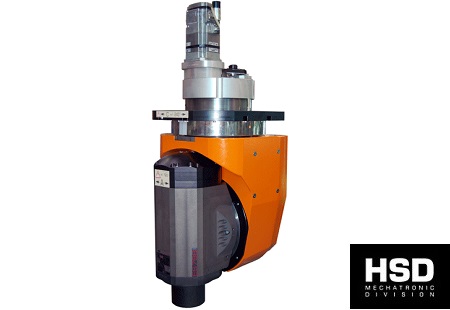

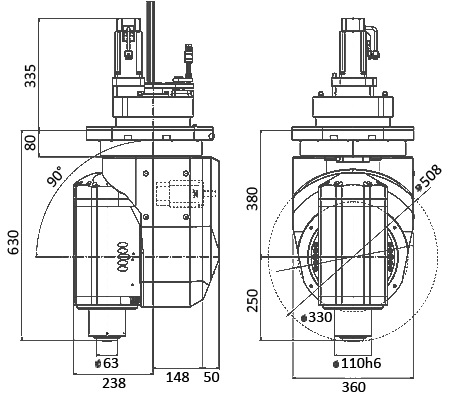

Head 2 Axles HS678 + Spindle ES798
2-Axis Electroheads with Automatic Tool Change Spindle is designed for application on machines working wood, mdf, fiberglass, plastic and composites, aluminum and steel.
Electrohead Data:
- Standard Servomotors: Yaskawa - Siemens - Fanuc - B&R - Osai - Glentek
- A Axis Stall / Max Torque: 500Nm / 1200Nm
- C Axis Stall / Max Torque: 500Nm / 1200Nm
- Clamping torque Axis brakes A /C: 1080Nm / 1080Nm
- Max. Speed Axes A / C: 120º sec / 200º sec
- Axis Positioning Accuracy A / C: 30 arsec / 30 arsec
- Axis Rotation A / C: ±120º / ±245º
- C Axis Endless Rotation: No
- A Axis Endless Rotation: No
- Direct Axes Encoder: Yes (Heidenhain)
- Pneumatic Axes Brakes: Yes
Automatic Tool Change Spindle
- HSD Model: ES798
- Liquid Cooling
- Rated Power (S1): 22.0 Kw (29.5 HP) - Asyn.
- Rated Power (S6): 25.0 Kw (33.5 HP) - Asyn.
- Rated Torque (S1): 28.0 Nm.
- Rated Torque (S6): 32.0 Nm
- Spindle Encoder: Yes
- Tool Holder: HSK-63F
- IP Class: 54
- Insulation Class: F
- Front Bearing: Super precrision dual ceramic bearings
- Rear Bearing: Super precrision dual ceramic bearings
- Integral Pneumatic Valve managing all air features
- Cone clean blow off, double acting pneumatic cylinder and front bearing nose pressurization
- Optional: Rotary Joint for internal tool cooling
Made in Italy by HSD
Warranty: 12 months

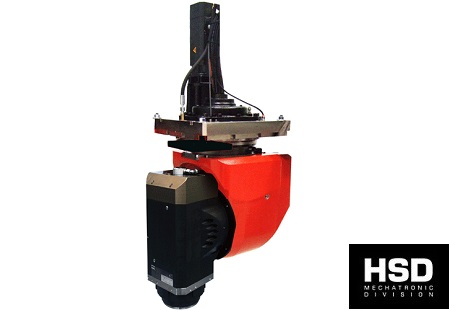

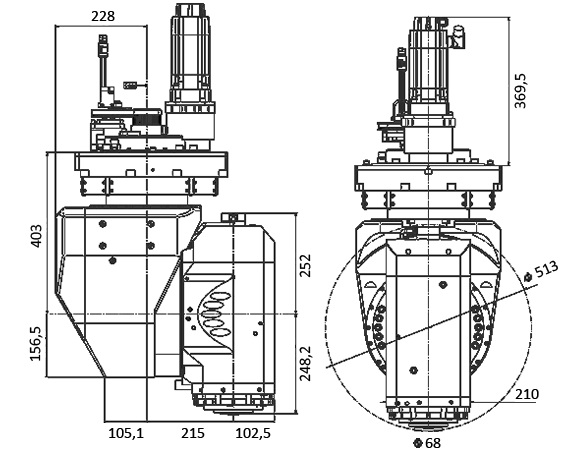

Head 2 Axles HS778 + Spindle ES510
2-Axis Electroheads with Automatic Tool Change Spindle is designed for application on machines working wood, mdf, fiberglass, plastic and composites, aluminum and steel.
Electrohead Data:
- Standard Servomotors: Yaskawa - Siemens
- A Axis Stall / Max Torque: 1000Nm / 2400Nm
- C Axis Stall / Max Torque: 1000Nm / 2400Nm
- Clamping torque Axis brakes A /C: 2000Nm / 3000Nm
- Max. Speed Axes A / C: 140º sec / 250º sec
- Axis Positioning Accuracy A / C: 30 arsec / 30 arsec
- Axis Rotation A / C: ±100º / ±262º
- C Axis Endless Rotation: No
- A Axis Endless Rotation: No
- Direct Axes Encoder: Yes (Renishaw / AMO)
- Axes Brakes: Yes (hydraulic)
Automatic Tool Change Spindle
- HSD Model: ES510
- Liquid Cooling
- Rated Power (S1): 42.0 Kw (56,.0 HP) - Asyn.
- Rated Power (S6): 55.0 Kw (73.0 HP) - Asyn.
- Rated Torque (S1): 67.0 Nm.
- Rated Torque (S6): 87.5 Nm
- Spindle Encoder: Yes
- Tool Holder: HSK-63A
- IP Class: 54
- Insulation Class: F
- Front Bearing: Super precrision dual ceramic bearings
- Rear Bearing: Super precrision dual ceramic bearings
- Integral Pneumatic Valve managing all air features
- Cone clean blow off, double acting pneumatic cylinder and front bearing nose pressurization
- Optional: Rotary Joint for internal tool cooling
Made in Italy by HSD
Warranty: 12 months
