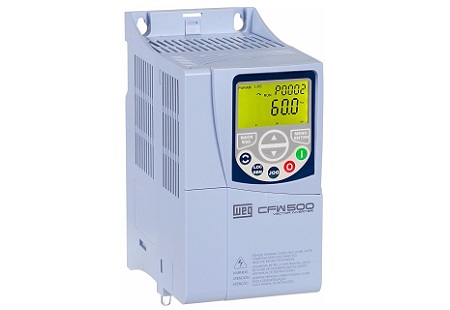

Ideal for machines or equipment that require precise control, easy operation, fast commissioning and infinite possibilities, the CFW500 is a high-performance VSD for three-phase induction motors.
- Scalar control (V / F) or Vector control (VVW)
- Plug-in modules: The optional communication network and I/O modules are easily installed, allowing interface of the standard VFD to each application Benefits: Selection and installation of several interface options allows the CFW500 to match a broad range of applications
- SoftPLC: Built-in PLC enables the VFD to do much more than just turn a motor. Programming flexibility combined with network and I/O options make the CFW500 a powerful part of an integrated systemBenefit: Often eliminates the need for an external PLC, reducing costs, optimizing space and simplifying the system
- Communication networks: CFW500 communications networks include: CANopen, DeviceNet, Profibus-DP, Modbus, Ethernet-IP, Profinet and Modbus-TCP/IPBenefits: Versatile integration with process networks for a wide range of applications
- Flash memory module: Quickly replicate the programming from one CFW500 to others without the need to apply power to the driveBenefits: Fast, easy and reliable programming for manufacturers that produce machines in large quantities
- High overload capacity: The standard CFW500 is capable of 150% overload for one minute, repeatable every 6 minutes, based on ambient temperature of 50° CBenefits: Does not require oversizing the VFD
- Ambient temperature 50 ºC
- Conformal Coating as Standard for all circuit boards
- NEMA1 Protection (standard) and IP20 (optional)
- Factory Installed C2 or C3 RFI Filter (optional)
- Flash memory module: quickly replicate the programming from one CFW500 to others without the need to apply power to the drive
- Free SuperDrive G2 and WLP software download
Ideal for machines or equipment that require precise control, easy operation, fast commissioning and infinite possibilities, the CFW500 is a high-performance VSD for three-phase induction motors.
- Scalar control (V / F) or Vector control (VVW)
- Plug-in modules: The optional communication network and I/O modules are easily installed, allowing interface of the standard VFD to each application Benefits: Selection and installation of several interface options allows the CFW500 to match a broad range of applications
- SoftPLC: Built-in PLC enables the VFD to do much more than just turn a motor. Programming flexibility combined with network and I/O options make the CFW500 a powerful part of an integrated systemBenefit: Often eliminates the need for an external PLC, reducing costs, optimizing space and simplifying the system
- Communication networks: CFW500 communications networks include: CANopen, DeviceNet, Profibus-DP, Modbus, Ethernet-IP, Profinet and Modbus-TCP/IPBenefits: Versatile integration with process networks for a wide range of applications
- Flash memory module: Quickly replicate the programming from one CFW500 to others without the need to apply power to the driveBenefits: Fast, easy and reliable programming for manufacturers that produce machines in large quantities
- High overload capacity: The standard CFW500 is capable of 150% overload for one minute, repeatable every 6 minutes, based on ambient temperature of 50° CBenefits: Does not require oversizing the VFD
- Ambient temperature 50 ºC
- Conformal Coating as Standard for all circuit boards
- NEMA1 Protection (standard) and IP20 (optional)
- Factory Installed C2 or C3 RFI Filter (optional)
- Flash memory module: quickly replicate the programming from one CFW500 to others without the need to apply power to the drive
- Free SuperDrive G2 and WLP software download
Ideal for machines or equipment that require precise control, easy operation, fast commissioning and infinite possibilities, the CFW500 is a high-performance VSD for three-phase induction motors.
- Scalar control (V / F) or Vector control (VVW)
- Plug-in modules: The optional communication network and I/O modules are easily installed, allowing interface of the standard VFD to each application Benefits: Selection and installation of several interface options allows the CFW500 to match a broad range of applications
- SoftPLC: Built-in PLC enables the VFD to do much more than just turn a motor. Programming flexibility combined with network and I/O options make the CFW500 a powerful part of an integrated systemBenefit: Often eliminates the need for an external PLC, reducing costs, optimizing space and simplifying the system
- Communication networks: CFW500 communications networks include: CANopen, DeviceNet, Profibus-DP, Modbus, Ethernet-IP, Profinet and Modbus-TCP/IPBenefits: Versatile integration with process networks for a wide range of applications
- Flash memory module: Quickly replicate the programming from one CFW500 to others without the need to apply power to the driveBenefits: Fast, easy and reliable programming for manufacturers that produce machines in large quantities
- High overload capacity: The standard CFW500 is capable of 150% overload for one minute, repeatable every 6 minutes, based on ambient temperature of 50° CBenefits: Does not require oversizing the VFD
- Ambient temperature 50 ºC
- Conformal Coating as Standard for all circuit boards
- NEMA1 Protection (standard) and IP20 (optional)
- Factory Installed C2 or C3 RFI Filter (optional)
- Flash memory module: quickly replicate the programming from one CFW500 to others without the need to apply power to the drive
- Free SuperDrive G2 and WLP software download
Ideal for machines or equipment that require precise control, easy operation, fast commissioning and infinite possibilities, the CFW500 is a high-performance VSD for three-phase induction motors.
- Scalar control (V / F) or Vector control (VVW)
- Plug-in modules: The optional communication network and I/O modules are easily installed, allowing interface of the standard VFD to each application Benefits: Selection and installation of several interface options allows the CFW500 to match a broad range of applications
- SoftPLC: Built-in PLC enables the VFD to do much more than just turn a motor. Programming flexibility combined with network and I/O options make the CFW500 a powerful part of an integrated systemBenefit: Often eliminates the need for an external PLC, reducing costs, optimizing space and simplifying the system
- Communication networks: CFW500 communications networks include: CANopen, DeviceNet, Profibus-DP, Modbus, Ethernet-IP, Profinet and Modbus-TCP/IPBenefits: Versatile integration with process networks for a wide range of applications
- Flash memory module: Quickly replicate the programming from one CFW500 to others without the need to apply power to the driveBenefits: Fast, easy and reliable programming for manufacturers that produce machines in large quantities
- High overload capacity: The standard CFW500 is capable of 150% overload for one minute, repeatable every 6 minutes, based on ambient temperature of 50° CBenefits: Does not require oversizing the VFD
- Ambient temperature 50 ºC
- Conformal Coating as Standard for all circuit boards
- NEMA1 Protection (standard) and IP20 (optional)
- Factory Installed C2 or C3 RFI Filter (optional)
- Flash memory module: quickly replicate the programming from one CFW500 to others without the need to apply power to the drive
- Free SuperDrive G2 and WLP software download
Ideal for machines or equipment that require precise control and easy operation, the CFW300 is a high-performance VSD for three-phase induction motors.
- 4 selectable NPN/PNP digital inputs (0-24 V DC);
- 1 relay output (0.5 A-250 V AC);
- 1 analog input (0-10 V DC or 0/4-20 mA);
- Selectable vector (VVW) or scalar (V/F) motor control;
- SoftPLC function;
- Simple, contactor-like installation;
- Built-in HMI;
- Operating temperature from 0 °C to 50 °C;
- Side by side mounting without clearance between VSDs;
- Surface, DIN rail or screw mounting;
- Brake IGBT (size B);
- Degree of protection IP20;
- Fan control and fast exchange system;
- Free WPS programming and monitoring software;
- Degree of protection 3C2 (factory standard);
- RoHS;
- Remote HMI.
Ideal for machines or equipment that require precise control and easy operation, the CFW300 is a high-performance VSD for three-phase induction motors.
- 4 selectable NPN/PNP digital inputs (0-24 V DC);
- 1 relay output (0.5 A-250 V AC);
- 1 analog input (0-10 V DC or 0/4-20 mA);
- Selectable vector (VVW) or scalar (V/F) motor control;
- SoftPLC function;
- Simple, contactor-like installation;
- Built-in HMI;
- Operating temperature from 0 °C to 50 °C;
- Side by side mounting without clearance between VSDs;
- Surface, DIN rail or screw mounting;
- Brake IGBT (size B);
- Degree of protection IP20;
- Fan control and fast exchange system;
- Free WPS programming and monitoring software;
- Degree of protection 3C2 (factory standard);
- RoHS;
- Remote HMI.
Ideal for machines or equipment that require precise control and easy operation, the CFW300 is a high-performance VSD for three-phase induction motors.
- 4 selectable NPN/PNP digital inputs (0-24 V DC);
- 1 relay output (0.5 A-250 V AC);
- 1 analog input (0-10 V DC or 0/4-20 mA);
- Selectable vector (VVW) or scalar (V/F) motor control;
- SoftPLC function;
- Simple, contactor-like installation;
- Built-in HMI;
- Operating temperature from 0 °C to 50 °C;
- Side by side mounting without clearance between VSDs;
- Surface, DIN rail or screw mounting;
- Brake IGBT (size B);
- Degree of protection IP20;
- Fan control and fast exchange system;
- Free WPS programming and monitoring software;
- Degree of protection 3C2 (factory standard);
- RoHS;
- Remote HMI.

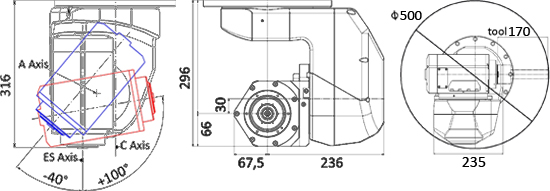

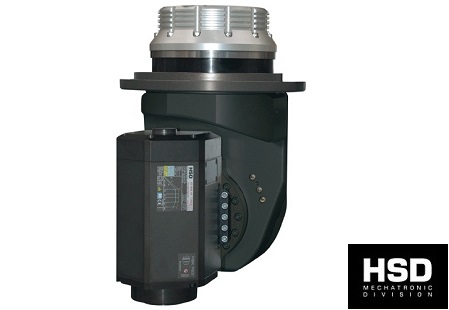

2-Axis Electroheads with Automatic Tool Change Spindle is designed for application on machines working wood, mdf, fiberglass, plastic and composites and aluminum. It is suitable for milling, boring, routing, grinding, polishing, etc.
Electrohead Data:
- Standard Servomotors: HSD Axes Motors
- A Axis Stall / Max Torque: 300Nm / 500Nm
- C Axis Stall / Max Torque: 300Nm / 500Nm
- Max. Speed Axes A / C: 75º sec / 75º sec
- Axis Positioning Accuracy A / C: 60 arsec / 60 arsec
- Axis Rotation A / C: +100º - 40º / ±220º
- C Axis Endless Rotation: Option
- A Axis Endless Rotation: No
- Direct Axes Encoder: No
- Pneumatic Axes Brakes: No
Automatic Tool Change Spindle
- HSD Model: ES368
- Liquid Cooling
- Rated Power (S1): 7.0 Kw (9.4 HP) / (S6): 8.7 Kw (11.6 HP) - Asyn.
- Rated Power (S1): 11.0 Kw (14.7 HP) / (S6): 13.0 Kw (17.4 HP) - Syn.
- Rated Torque (S1): 5.6 Nm / (S6): 6.9 Nm - Asyn.
- Rated Torque (S1): 8.7 Nm / (S6): 10.3 Nm - Syn.
- Spindle Encoder: Option
- Tool Holder: HSK-63F
- IP Class: 54
- Insulation Class: F
- Front Bearing: Super precrision dual ceramic bearings
- Rear Bearing: Super precrision dual ceramic bearings
- Integral Pneumatic Valve managing all air features
- Cone clean blow off, double acting pneumatic cylinder and front bearing nose pressurization

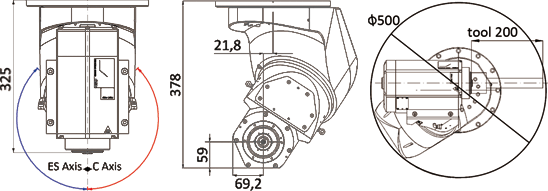

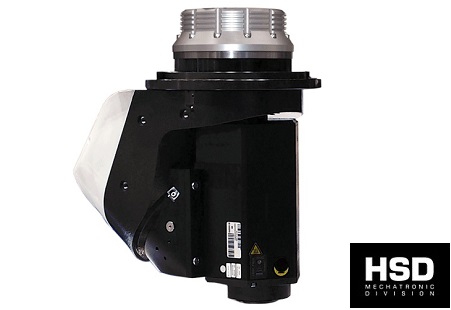

2-Axis Electroheads with Automatic Tool Change Spindle is designed for application on machines working wood, mdf, fiberglass, plastic and composites and aluminum.
Electrohead Data:
- Standard Servomotors: HSD Axes Motors
- A Axis Stall / Max Torque: 300Nm / 500Nm
- C Axis Stall / Max Torque: 300Nm / 500Nm
- Max. Speed Axes A / C: 75º sec / 75º sec
- Axis Positioning Accuracy A / C: 60 arsec / 60 arsec
- Axis Rotation A / C: Endless / ±220º
- C Axis Endless Rotation: Option
- A Axis Endless Rotation: Yes
- Direct Axes Encoder: No
- Pneumatic Axes Brakes: No
Automatic Tool Change Spindle
- HSD Model: ES369
- Liquid Cooling
- Rated Power (S1): 7.0 Kw (9.4 HP) / (S6): 8.7 Kw (11.6 HP) - Asyn.
- Rated Power (S1): 11.0 Kw (14.7 HP) / (S6): 13.0 Kw (17.4 HP) - Syn.
- Rated Torque (S1): 5.6 Nm / (S6): 6.9 Nm - Asyn.
- Rated Torque (S1): 8.7 Nm / (S6): 10.3 Nm - Syn.
- Spindle Encoder: No
- Tool Holder: HSK-63F
- IP Class: 54
- Insulation Class: F
- Front Bearing: Super precrision dual ceramic bearings
- Rear Bearing: Super precrision dual ceramic bearings
- Integral Pneumatic Valve managing all air features
- Cone clean blow off, double acting pneumatic cylinder and front bearing nose pressurization
2-Axis Electroheads with Automatic Tool Change Spindle is designed for application on machines working wood, mdf, fiberglass, plastic and composites and aluminum. It is suitable for milling, boring, routing, grinding, polishing, etc.
Electrohead Data
- Standard Servomotors: Yaskawa - Siemens - Num - Beckhoff
- A Axis Stall / Max Torque: 300Nm / 600Nm
- C Axis Stall / Max Torque: 400Nm / 800Nm
- Max. Speed Axes A / C: 80º sec / 80º sec
- Axis Positioning Accuracy A / C: 60 arsec / 60 arsec
- Axis Rotation A / C: Endlessº / ±245º
- C Axis Endless Rotation: Option
- A Axis Endless Rotation: Yes
- Direct Axes Encoder: No
- Pneumatic Axes Brakes: No
Automatic Tool Change Spindle
- HSD Model: ES779
- Liquid Cooling
- Rated Power (S1): 10.0 Kw (13.4 HP) - Asyn.
- Rated Power (S6): 12.0 Kw (16.0 HP) - Asyn.
- Rated Torque (S1): 12.7 Nm.
- Rated Torque (S6): 15.3 Nm
- Spindle Encoder: Option
- Tool Holder: HSK-63F
- IP Class: 54
- Insulation Class: F
- Front Bearing: Super precrision dual ceramic bearings
- Rear Bearing: Super precrision dual ceramic bearings
- Integral Pneumatic Valve managing all air features
- Cone clean blow off, double acting pneumatic cylinder and front bearing nose pressurization
